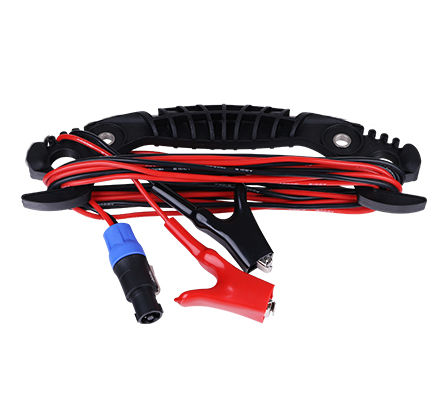

The Speak-on direct connection lead for the new 5-Watt, 10-Watt, and 25-Watt transmitter consists of two cables, one (red clip) must be connected to the conductor being located, the other (black clip) to a suitable ground (a ground stake is provided with the transmitter).. The Standard Clip version is more suited for day to day use where the size of the targeted lines varies, and connections will be made to common services.
Back to top of page
The direct connection lead consists of two cables, one (red clip) must be connected to the conductor being located, the other (black clip) to a suitable ground (a ground stake is provided with the transmitter). A few options are available for specific industries and conditions. The Standard Clip version is more suited for day to day use where the size of the targeted lines varies, and connections will be made to common services.
Back to top of page
The direct connection lead consists of two cables, one (red clip) must be connected to the conductor being located, the other (black clip) to a suitable ground (a ground stake is provided with the transmitter). A few options are available for specific industries and conditions. Heavy Duty Clip version is more suited for the gas and water industries where the size of the targeted lines is larger, and connections will be made to bell housings, fire hydrants and transformer boxes. The more aggressive teeth of the heavy-duty clip also make it easier to connect to objects that are painted such as hydrants.
Back to top of page

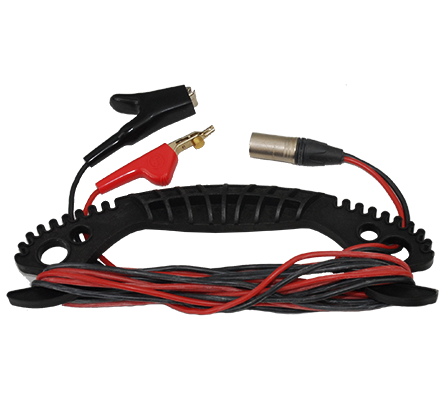

The direct connection lead consists of two cables, one (red clip) must be connected to the conductor being located, the other (black clip) to a suitable ground (a ground stake is provided with the transmitter). A few options are available for specific industries and conditions. Telco Clip version is suitable for telephone cable where the user cannot access the sheath of the cable. The “bed of nails” part of this clip can be clamped onto a cable breaking the insulation allowing contact with the sheath. The Telco Clip is constructed with an Insulation Piercing Bed of Nails and spike.
Back to top of page

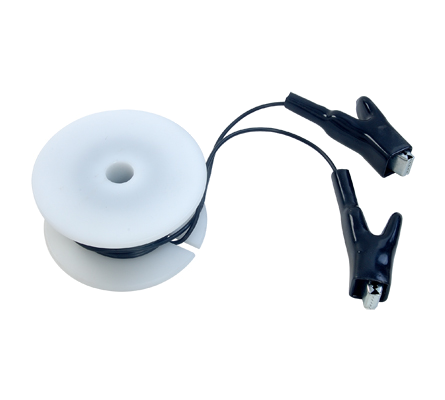

Use the extension spool to extend the ground connection to reach a suitable grounding position. Extending the ground allows the user to move the ground lead to various positions to help the transmitters signal to travel further. By extending the length of the ground lead the user can use locate tactics such as performing a double ended connection.
Back to top of page
Signal Clamps provides a precise way to apply a locating signal. It is generally used when it is not possible or convenient to access the conductor to make a direct connection but there is sufficient room to place the clamp around the cable or pipe, or when it is not safe to make a direct connection because the target cable is carrying electricity. Signal Clamps are specialized inductive devices, sometimes known as a toroid or coupler. All clamps are optimized to work at specific frequencies. In most cases clamps are designed to be used at frequencies generally between 8kHz and 83.1kHz. Range of clamps from 2” to 18” Apply a transmitter signal to live cables Apply locate signals on lines in a range of situations
VM Clamp Technical Specifications VM Clamp User Guide Back to top of page
The Clamp Extension Rod is a plastic non-conductive rod with male and female threads at opposite ends. This hardware allows the extension rod to be connected and extend the length A transmitter signal clamp attached to the extension rod can now be safely used on lines in trenches and manholes.
The Live Plug Connector (LPC separation filter) is used to safely inject a locate frequency onto a live street distribution cable using a standard household mains socket from a building. This allows the cable to be traced from the premises to the connection in the street. The LPC separation filter is useable with transmitter frequencies of 8 kHz, 33 kHz, 65 kHz and has a roatary knob for phase switching. Use the Live Plug Connector for connecting to voltages between 100V AC and 250V AC.
The Live Cable Connector is usable on live cables up to 480 V ac 60/50Hz. The Live Cable Connector operates on frequencies of 8kHz, 33kHz and SIS. The Transmitter provides power in, the output leads from the separation filter can be connected to conductors carrying up to 480V AC. Note that the Live Cable Connector should only be used by approved operatives adhering to company regulations and work practices while using appropriate safety equipment and clothing.
LCC Data Sheet Back to top of page

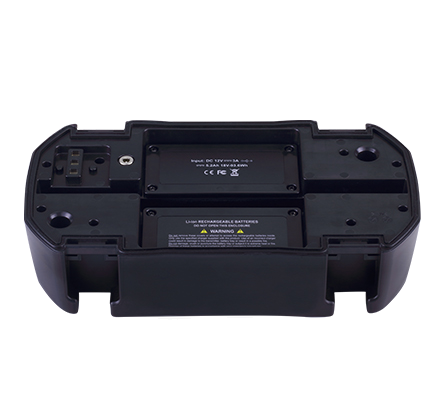

Loc3 Series Transmitters Li-ion Rechargeable Battery The rechargeable battery kit for the Loc3 Series Transmitters are supplied with a charger assembly and custom Lithium-ion battery. Lithium-ion batteries are high capacity, do not develop a memory and can hold a charge for an extended amount of time.
Output Power Alkaline Li-Ion (Rechargeable)
(At 70Fº (21Cº) continuous use)
1-watt 25 hours 50 hours
5-watt 6 hours 10 hours
10-watt 4-5 hours 6 hours
Li-ion batteries will withstand well over 500 charging life cycles.
The 12-V Vehicle Charging Lead works from an automotive cigarette lighter socket or outside power source. This 30ft/9m lead makes it easy to stay charged up while on the go. The 12-Volt, Transmitter Vehicle Power Lead can:

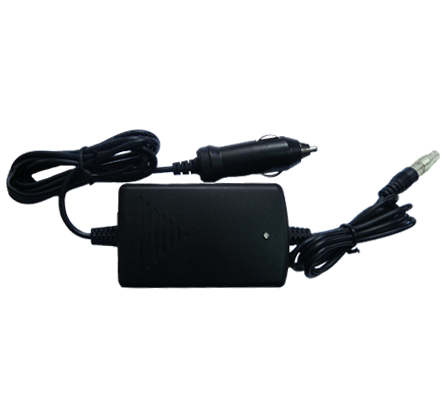

The 12V vehicle charging lead will charge a locator’s Li-Ion rechargeable battery pack from an automotive cigarette lighter socket. This 12ft/4m lead makes it easy to stay charged up while on the go.
Back to top of page

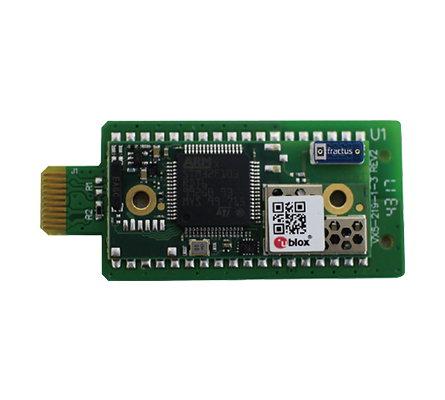

The Bluetooth communications accessory is an optional extra for the vLoc3 Receivers. This allows the vLoc3 Receiver to communicate with external devices such as a mobile phone, tablet, or GPS device. The Bluetooth option can be retrofitted and can be ordered at a later date if preferred.

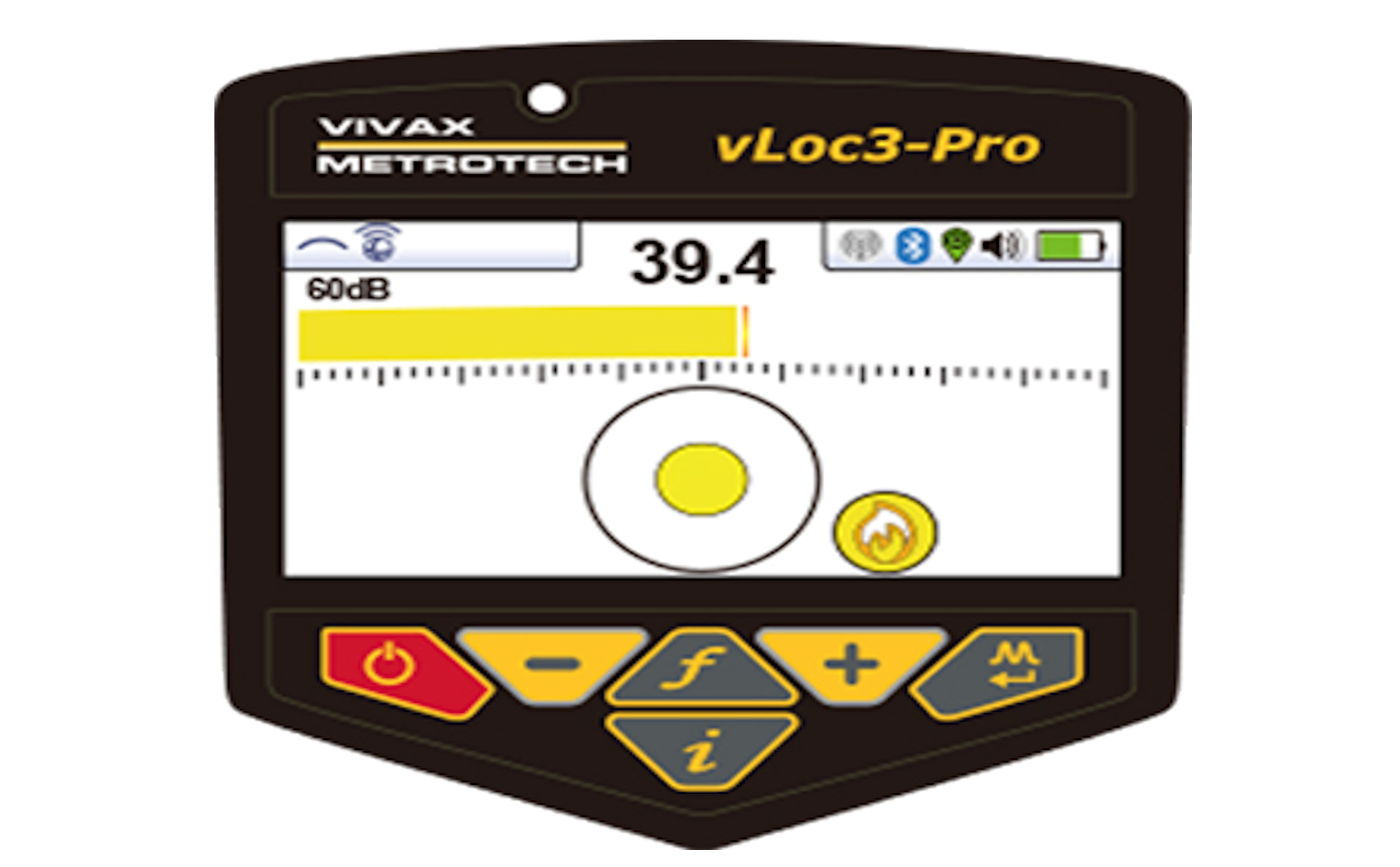

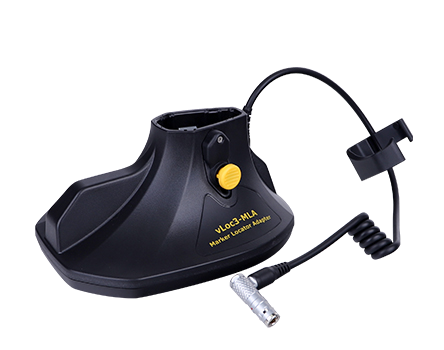

The vLoc3-MLA (Marker Locator Adapter) is designed for easy, fast and accurate location of buried EMS markers. Once located the MLA will give depth of cover to the buried marker with the touch of a button. The MLA attaches to the bottom of vLoc3-Pro, vLoc3-XLF, vLoc3 RTK-Pro, vLoc3-9800 and vLoc3-5000 receivers. When attached and pluged in to the receivers two marker related operating modes are enabled. In the dedicated marker mode, the receiver screens show a peak bar graph with the signal strength from the marker, the marker type and depth to the marker. In the dual marker mode all the above are shown in addition to the standard utility locate screen including left/right arrows and compass. The plug-and-play MLA will detect any one of nine marker types, in good conditions, buried to a depth of 6’/2m and large flat markers to 9’/3m.
vLoc3-MLA Sales Sheet
vLoc3-MLA User Guide
vLoc3-MLA Technical Specifications
Back to top of page

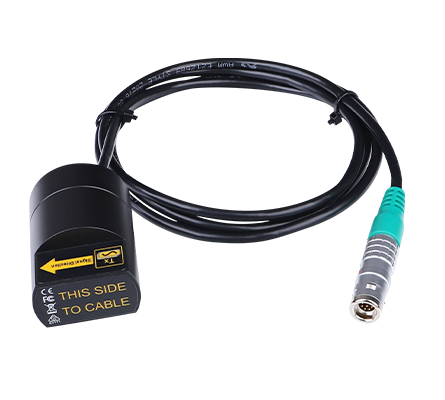

The Remote Antenna can be used to help identify a cable in a cable tray, where cables are bunched together, or in proximity making it impossible to use a conventional locator. When used with the vLoc3-5000 receiver with SiS (signal select mode), the SiS mode becomes a powerful tool that easily identifies a particular cable on a cable tray or where cables are bunched together by providing a visible positive or negative icon (+ and -) when the cable is touched by the antenna. This accessory is compatible with all vLoc3 series receivers.
vLoc3 Series Remote Antenna User Guide vLoc3 Series Remote Antenna Specifications Back to top of page

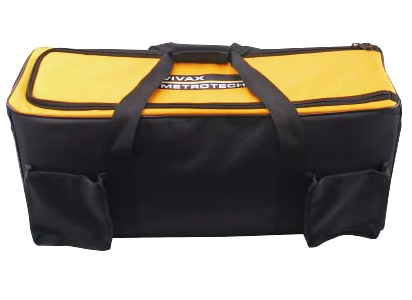

The vLoc3 series carry bag has room to comfortably carry the vLoc3 series receivers along with the Loc3 transmitters, direct connection leads, user manual and battery charger. The bag has four pockets, a high density foam insert to snugly secure your reciever and transmitter, and a double ended heavy duty zipper for easy access.
Back to top of page

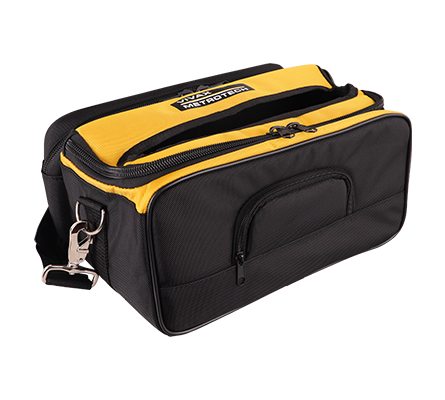

The Loc3-Tx carry bag has compartments for the ground stake, connection leads and more. The transmitter can be fully operated without removing removing it from the bag. The bag comes with an adjustable shoulder strap.
Back to top of page

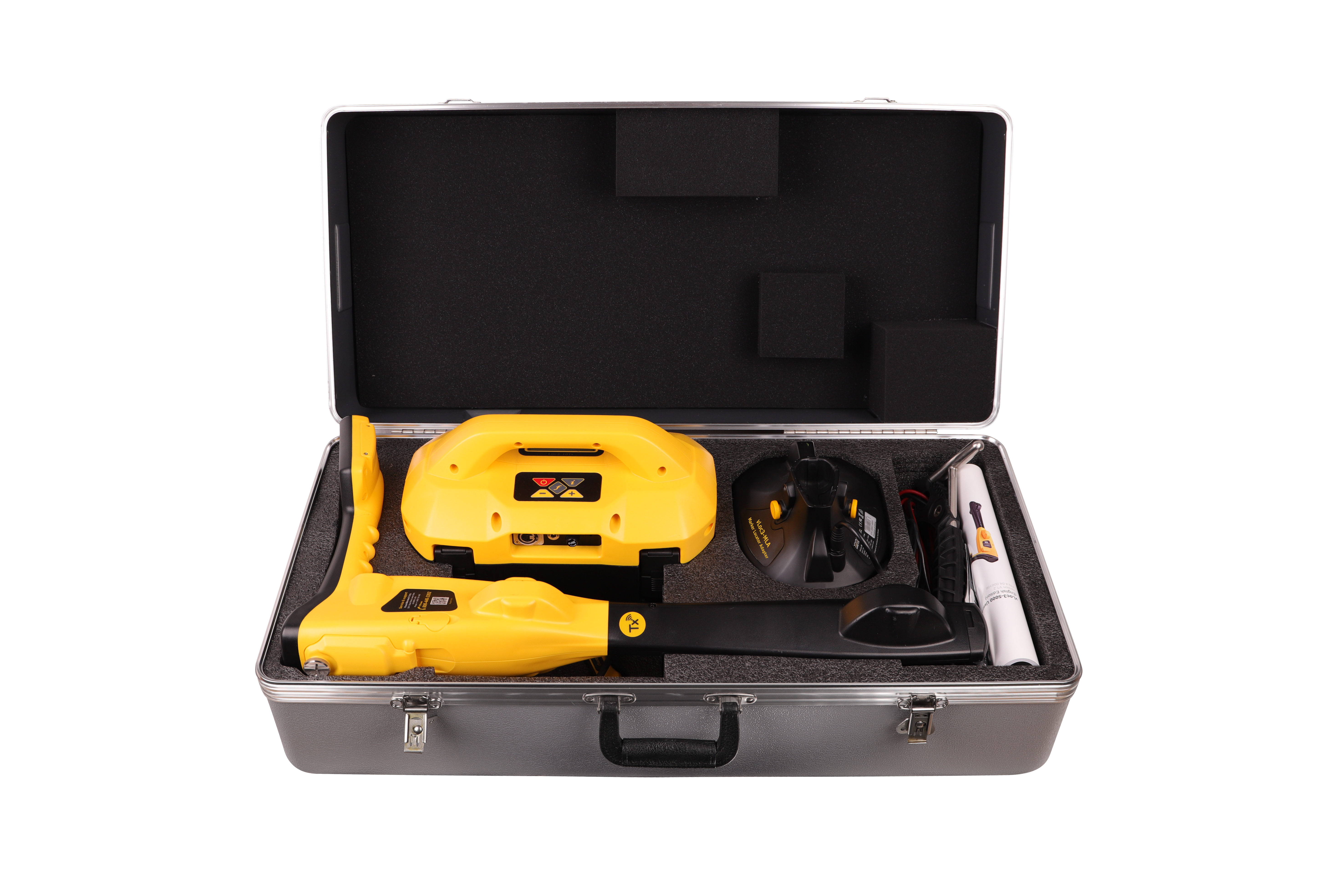

The vLoc3 series hard case has room to comfortably carry the vLoc3 series receivers along with the Loc3 transmitters, signal clamp, direct connection leads, user manual and battery charger. The hard case has a hard plastic out side with a high density foam insert inside to portect your locating kit.
Back to top of page

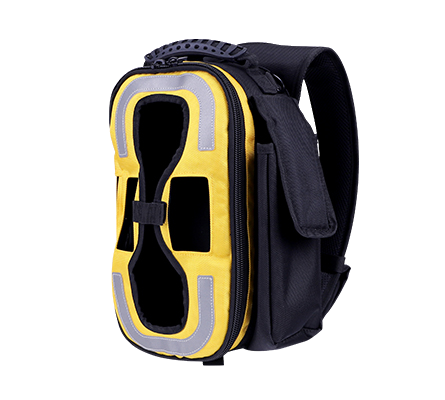

Pack all your locating needs in the Vivax-Metrotech Loc3 Series Backpack. Made from durable 1680D Ballistic Nylon fabric, its solid construct embeds functional features, such as rugged oversize zippers, easy-to-reach pockets, molded rubber top handle and loops to hold a vLoc3 receiver. Carry locating equipment in comfort with the backpack’s wide padded ventilated adjustable shoulder straps and molded top grab handle. The padded ventilated back panel adds an additional level of comfort when wearing the backpack. Each shoulder strap has a three-inch deep by one and three quarter by one-inch pocket for carrying day-to-day tools like pedestal wrenches, screwdrivers, or a mini multi-tool. The backpack top windows allow access to the LCD and keypad, while the window on the side allows full access to the connection lead sockets and AC/DC charging socket. This allows for full operation of the transmitter while it is in the backpack. The large side accessory pocket provides a place to carry the direct connection lead and ground stake on its cable organizer. Know that you will be seen from dawn to dusk with the reflective safety strips on both the backpack’s straps and face.
